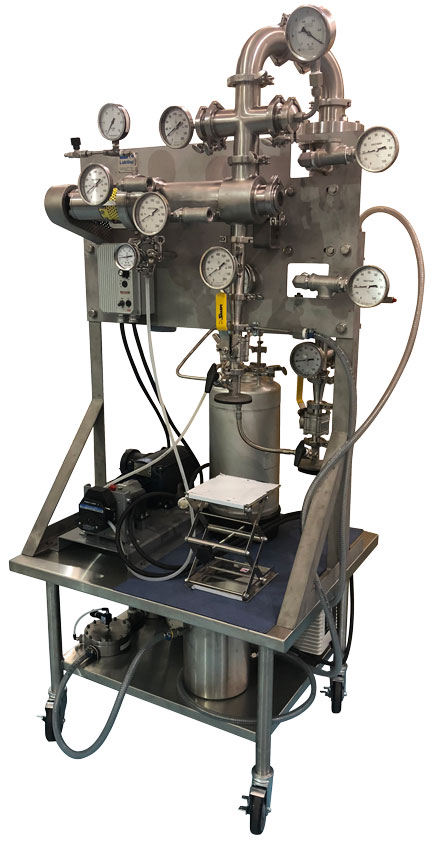

Sanitary Super LabVap® System

The LCI Sanitary Super LabVap® System is your solution for sanitary development of your product with LCI’s thin film evaporation technology. Capable of meeting the 3-A sanitary standard, it’s ideal for developing food and pharmaceutical products.

Fast Facts

Heated Surface Area: 0.5ft²
Material of Construction: 316 SS process wetted parts
Process Area P/T Rating: FV to ATM @ 650°F
Jacket P/T Rating: 150psig @ 365°F (steam), 100 psig @650°F (liquid)
Feed Rate: 2-40 lb/hr (typical)
Viscosity: 8,000 cP max (typical)

Features and Benefits

Test or Lease to quickly and efficiently determine if development of your product is possible with LCI thin film evaporation
Designed for CIP requirements
Minimal product required for operation
Operate under vacuum as low as 1 Torr
Quick disassembly/assembly for ease in cleaning and inspection
Horizontal configuration allows for greater residence time control
Explosion-proof
Engineering support for set-up, process assistance, parts, and service
Ready for connection to your utilities

See how it works with common applications.

Literature

Sanitary Super LabVap Laboratory Evaporator
Sanitary Super LabVap Brochure LabVap Lab Scale Thin Film Evaporator
Labvap Thin Film Evaporator Technical Bulletin Evaporator type chart
Evaporator Type Comparison Chart Thin Film Evaporator Design Options
Thin Film Evaporator Design
Thin Film Evaporator Operation

High Viscosity Processor

LCI’s high viscosity processor is ideal for various polymers, resins, highly viscous food products and many others because it provides higher heat and mass transfer rates for viscous fluids and reliability when compared to other types of evaporation equipment.

Thin Film Evaporators

An LCI agitated thin film evaporator (TFE) or wiped film evaporator (WFE or "wiffe") provides short residence time and open, low pressure drop configuration, allowing continuous, reliable processing of many heat sensitive, viscous, or fouling materials without product degradation.
