LabVap® System

The LabVap is a small laboratory thin film evaporator system for R&D facilities developing products/processes utilizing thin film evaporation.

LabVap Fast Facts

0.25ft2 heated surface area option:

  • Material of Construction: 316 SS process wetted parts
  • Process Area P/T Rating: FV to ATM @ 650°F
  • Jacket P/T Rating: 150psig @ 365°F (steam), 100 psig @650°F (liquid)
  • Feed Rate: 2-20 lb/hr (typical)
  • Viscosity: 4,000 cP max (typical)

0.5ft2 heated surface area option:

  • Material of Construction: 316 SS process wetted parts
  • Process Area P/T Rating: FV to ATM @ 650°F
  • Jacket P/T Rating: 150psig @ 365°F (steam), 100 psig @650°F (liquid)
  • Feed Rate: 2-40 lb/hr (typical)
  • Viscosity: 8,000 cP max (typical)

Features and Benefits

LCI’s Labvap System is your solution for lab scale development of your product with LCI’s Thin Film Evaporation technology.

  • Test or Lease to quickly and efficiently determine if development of your product is possible with LCI Thin Film Evaporation
  • Minimal product required for operation
  • Operate under vacuum as low as 1 Torr
  • Co-Current and Counter-Current configurations available
  • Quick disassembly/assembly for ease in cleaning and inspection
  • Available in different sizes and sanitary designs
  • Horizontal configuration allows for greater residence time control
  • Explosion-proof
  • Engineering support for set-up, process assistance, parts, and service
  • Ready for connection to your utilities

At LCI, we customize our solutions to meet your needs. Ask how we can optimize our units for your unique product.

See how it works with common applications.

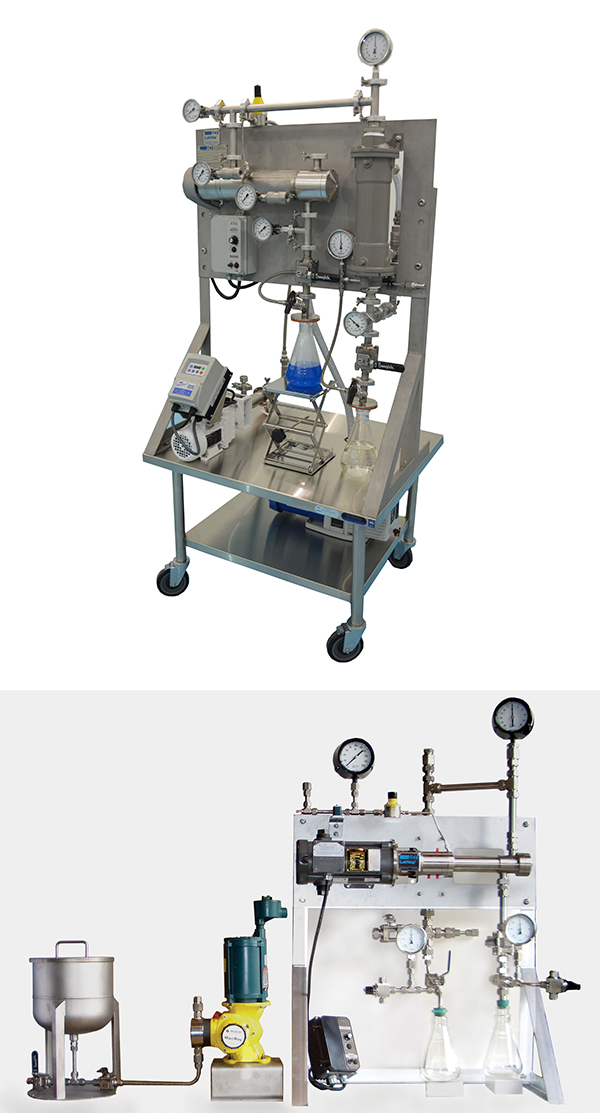

LabVap Systems
