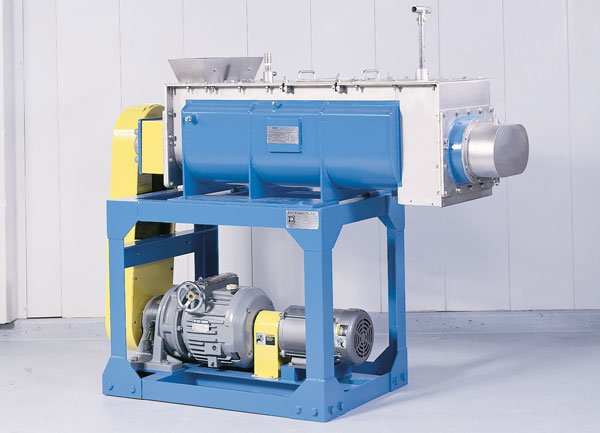

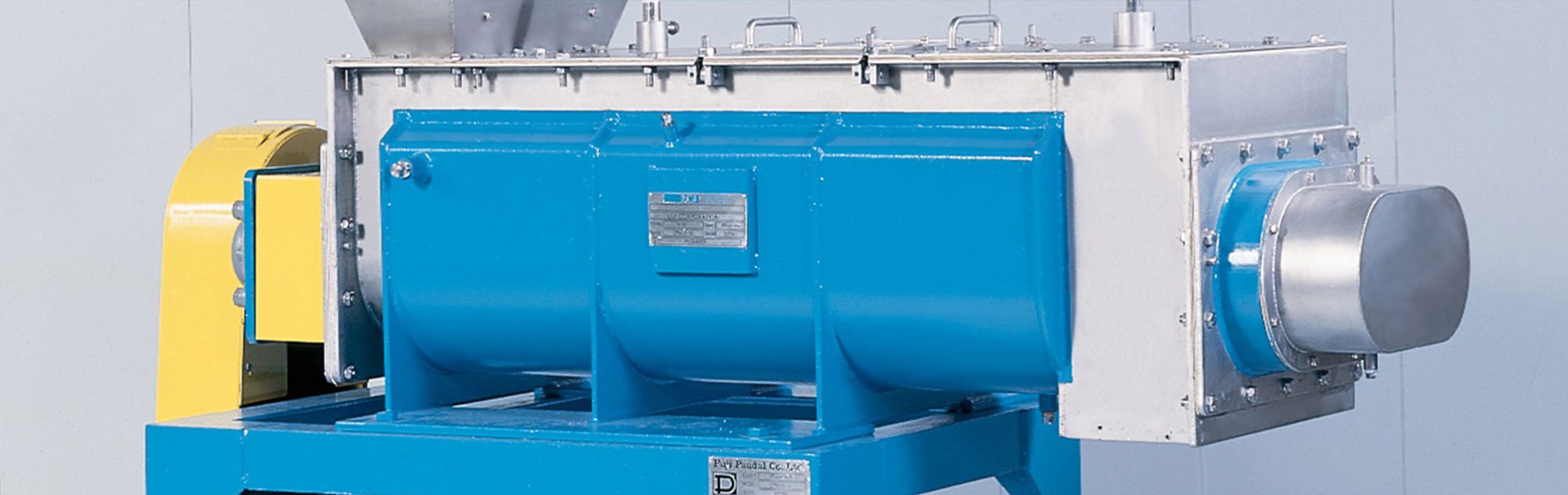

Pug Mixers

Provides excellent dispersive mixing of liquids into powers. Specially designed paddles continuously mix to form a homogenous wet mass ideal for continuous wet granulation processes.

The Pug Mixer's rugged industrial design coupled with the described features, make this device ideal for wet granulation processes and allow it to provide years of trouble-free operation.

Dry powder is introduced into the Pug Mixer at a constant rate. Liquid is added to the moving dry powder through a drip bar or spray nozzle. Liquid and powder are intimately mixed by special mising paddles on each shaft, producing an extrudable wet mass. The twin shafts rotate outward (or inward if required), transporting material along the barrel toward the discharge.

Features and Benefits

Stainless steel construction
Variable speed drive
Explosion proof electricals
Heating/cooling jacket
Internal baffles
Alternate frame layout
Alternate drive layout
Multiple liquid addition arrangements
Sacrificial liner
Bolted or clamped inspection covers

Literature

Pug Mixer Technical Bulletin
